產品名稱： RVVSP屏蔽對絞型電纜線 | |
| 產品型號： RVVSP | ||
| 產品價格： |
||
| 發布時間：2016/10/4 19:10:18 | ||
| 關 注 度：8699 | ||

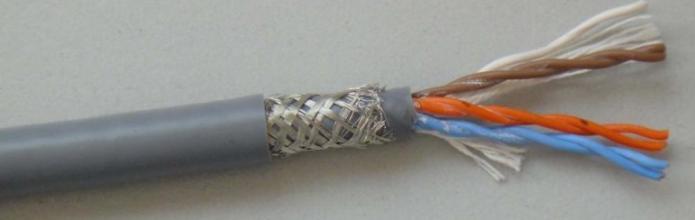

RVVSP屏蔽對絞型電纜線
產品描述 Description
RVVSP也叫RVSP聚氯乙烯絕緣聚氯乙烯護套屏蔽雙絞線 ：用于野外線路、電器儀表、電訊廣播、防盜報警系統、樓宇對講系統、視頻監控系統、電子設備及自動化裝置等屏蔽線路中。
Rvvsp also called RVSP PVC insulated PVC sheathed shielded twisted pair: for the field lines, electrical appliances, telecommunications, broadcasting, anti-theft alarm system, building intercom system, video monitoring system, electronic equipment and automatic device, shielding line.
使用范圍 Range of use http://www.unitedco.cn
適用于通訊、音頻、廣播音響系統、電腦、儀表和電子機械自動化等頻率較高設備，主要用于抗體干擾線路屏蔽，特殊儀器之線對抗阻要求等等。
Suitable for communication, audio, broadcast audio systems, computers, instrumentation and electronic mechanical automation and other high frequency equipment, mainly used for antibody interference line shielding, special equipment, such as the line of resistance requirements and so on.http://www.unitedco.cn
產品特點Characteristics
1、多支高純度4N無氧銅絞合而成
A plurality of high purity copper twisted 4N
2、兩芯對絞、兩對對絞，線對阻抗均衡，傳輸速率快
Two pairs of twisted pairs, two pairs of pairs of pairs of twisted, the impedance of the line balance, fast transmission
3、高屏蔽性能，抗干擾
High shielding performance, anti jamming
4、絕緣、護套采用阻燃、環保、防腐、耐油聚氯乙烯護套
Insulation, sheath using flame retardant, environmental protection, corrosion protection, oil resistant PVC sheathhttp://www.unitedco.cn
5、采用精密噴碼機，長度精確
Using precision inkjet printer, accurate length
| 使用溫度: 1：使用溫度（℃): -40～+60 2:安裝敷設溫度不低如: -15℃ | |||
| 允許最小彎曲半徑:室內不小于5倍,室外10倍 | |||
| 結構: 1:多股銅絲線芯 2:聚氯乙烯絕緣 3:每2芯雙絞 3:鋁箔屏蔽+銅絲編織網屏蔽 4聚氯乙烯護套 | |||
| 額定電壓: 300V/300V 300V/500V | |||
| 采用標準: GB/T5023-1997 | |||
| RVVSP屏蔽雙絞線全系列：可以做到2芯到24芯，線徑有：0.3、0.5、0.75、1.0、1.5、2.0、2.5、4.0等，(ZR-RVVSP阻燃）,( RVVSP22鎧裝）等特殊型號可以按客戶要求生產 | |||
| 定貨型號 | |||
| RVVSP2x0.5 | RVVSP2x0.75 | RVVSP2x1.0 | RVVSP2x1.5 |
| RVVSP4x0.5 | RVVSP4x0.75 | RVVSP4x1.0 | RVVSP4x1.5 |
| RVVSP6x0.5http://www.unitedco.cn | RVVSP6x0.75 | RVVSP6x1.0 | RVVSP6x1.5 |
| RVVSP8x0.5 | RVVSP8x0.75 | RVVSP8x1.0 | RVVSP8x1.5 |
| RVVSP10x0.5 | RVVSP10x0.75 | RVVSP10x1.0 | RVVSP10x1.5 |
