執行標準：Q/IRMV2-2008

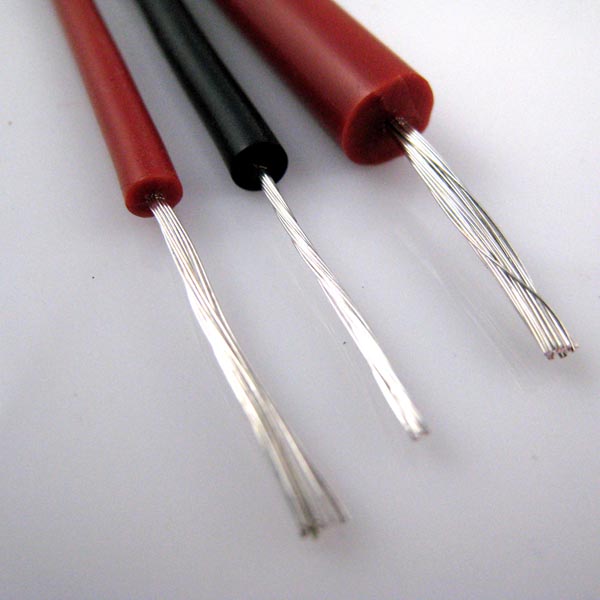

型號：AGG-DC
| 電壓等級(KV) | 導體標稱截面（mm2） |
導體結構
根數/單線直徑
|
絕緣厚度(mm) | 平均外徑(mm) | 20℃時導體電阻z大值(Ω/km) |
|
5
|
0.20
|
7/0.20
|
1.00
|
2.60
|
95.0
|
|
0.35
|
19/0.16
|
1.00
|
2.80
|
53.1
|
|
|
0.50
|
16/0.20
|
1.00
|
3.00
|
10.1
|
|
|
0.75
|
24/0.20
|
1.20
|
3.60
|
26.7
|
|
|
1.00
|
32/0.20
|
1.30
|
4.00
|
20.0
|
|
|
1.50
|
30/0.25
|
1.50
|
4.60
|
13.7
|
|
|
2.50
|
49/0.25
|
1.60
|
5.40
|
8.21
|
|
|
10
|
0.20
|
7/0.20
|
1.30
|
3.20
|
95.0
|
|
0.35
|
19/0.16
|
1.30
|
3.40
|
53.1
|
|
|
0.50
|
16/0.20
|
1.30
|
3.60
|
10.1
|
|
|
0.75
|
24/0.20
|
1.50
|
4.20
|
26.7
|
|
|
1.00
|
32/0.20
|
1.50
|
4.40
|
20.0
|
|
|
1.50
|
30/0.25
|
1.80
|
5.20
|
13.7
|
|
|
2.50
|
49/0.25
|
1.80
|
5.80
|
8.21
|
|
|
4.00
|
56/0.30
|
2.00
|
6.80
|
5.09
|
|
|
6.00
|
84/0.30
|
2.00
|
7.60
|
3.39
|
|
|
15
|
0.20
|
7/0.20
|
1.70
|
4.00
|
95.0
|
|
0.35
|
19/0.16
|
1.70
|
4.20
|
53.1
|
|
|
0.50
|
16/0.20
|
1.70
|
4.40
|
40.1
|
|
|
0.75
|
24/0.20
|
2.00
|
5.20
|
26.7
|
|
|
1.00
|
32/0.20
|
2.00
|
5.30
|
20.0
|
|
|
1.50
|
30/0.25
|
2.20
|
6.00
|
13.7
|
|
|
2.50
|
49/0.25
|
2.20
|
6.60
|
8.21
|
|
|
4.00
|
56/0.30
|
2.40
|
7.60
|
5.09
|
|
|
6.00
|
84/0.30
|
2.40
|
8.40
|
3.39
|
|
|
20
|
0.20
|
7/0.20
|
1.80
|
4.20
|
95.0
|
|
0.35
|
19/0.16
|
1.80
|
4.40
|
53.1
|
|
|
0.50
|
16/0.20
|
1.80
|
4.60
|
40.1
|
|
|
0.75
|
24/0.20
|
2.20
|
5.60
|
26.7
|
|
|
1.00
|
32/0.20
|
2.20
|
5.80
|
20.0
|
|
|
1.50
|
30/0.25
|
2.40
|
6.40
|
13.7
|
|
|
2.50
|
49/0.25
|
2.40
|
7.00
|
8.21
|
|
|
4.00
|
56/0.30
|
2.60
|
8.00
|
5.09
|
|
|
6.00
|
84/0.30
|
2.60
|
8.80
|
3.39
|
|
|
25
|
0.20
|
7/0.20
|
2.50
|
5.60
|
95.0
|
|
0.35
|
19/0.16
|
2.50
|
5.80
|
53.1
|
|
|
0.50
|
16/0.20
|
2.50
|
6.00
|
40.1
|
|
|
0.75
|
24/0.20
|
2.70
|
6.60
|
26.7
|
|
|
1.00
|
32/0.20
|
2.70
|
6.80
|
20.0
|
|
|
1.50
|
30/0.25
|
2.90
|
7.50
|
13.7
|
|
|
2.50
|
49/0.25
|
2.90
|
8.00
|
8.21
|
|
|
4.00
|
56/0.30
|
3.10
|
9.00
|
5.09
|
|
|
6.00
|
84/0.30
|
3.10
|
9.80
|
3.39
|
|
|
30
|
0.20
|
7/0.20
|
3.00
|
6.60
|
95.0
|
|
0.35
|
19/0.16
|
3.00
|
6.80
|
53.1
|
|
|
0.50
|
16/0.20
|
3.00
|
7.00
|
40.1
|
|
|
0.75
|
24/0.20
|
3.40
|
8.00
|
26.7
|
|
|
1.00
|
32/0.20
|
3.40
|
8.20
|
20.0
|
|
|
1.50
|
30/0.25
|
3.60
|
9.00
|
13.7
|
|
|
2.50
|
49/0.25
|
3.60
|
9.40
|
8.21
|
|
|
4.00
|
56/0.30
|
3.80
|
10.5
|
5.09
|
|
|
6.00
|
84/0.30
|
3.80
|
11.2
|
3.39
|
|
|
50
|
0.20
|
7/0.20
|
7.00
|
14.6
|
95.0
|
|
0.35
|
19/0.16
|
7.00
|
14.8
|
53.1
|
|
|
0.50
|
16/0.20
|
7.00
|
15.0
|
40.1
|
|
|
0.75
|
24/0.20
|
7.20
|
15.6
|
26.7
|
|
|
1.00
|
32/0.20
|
7.20
|
15.8
|
20.0
|
|
|
1.50
|
30/0.25
|
7.50
|
16.6
|
13.7
|
|
|
2.50
|
49/0.25
|
7.50
|
17.2
|
8.21
|
|
|
4.00
|
56/0.30
|
8.00
|
19.0
|
5.09
|
|
|
6.00
|
84/0.30
|
8.00
|
20.0
|
3.39
|
|
|
100
|
1.00
|
32/0.30
|
12.0
|
25.0
|
20.0
|
|
1.50
|
30/0.25
|
13.0
|
27.8
|
13.7
|
|
|
2.50
|
49/0.25
|
13.0
|
28.5
|
8.21
|
|
特點/用途：
具有優良的高溫耐低溫性能，具有電絕緣性能，化學穩定性能，耐高電壓，耐老化，使用壽命長。且柔軟便于安裝。
廣泛應用于煤氣點火、汽車點火、高壓測試臺、電視機、微波爐、霓紅燈、儀器儀表內部高壓、安裝連接用電子電器及其他器械的高電壓場合。
產品特性：
1、額定電壓：直流 5KV、10KV、15KV、20KV、25KV、30KV、50KV、100KV
2、工作溫度：-60～+200℃
3、導 體：絞合鍍錫銅線
4、絕 緣：硅橡膠
5、顏 色：紅/黃/蘭/白/黑/黃綠/棕等
