產品特點

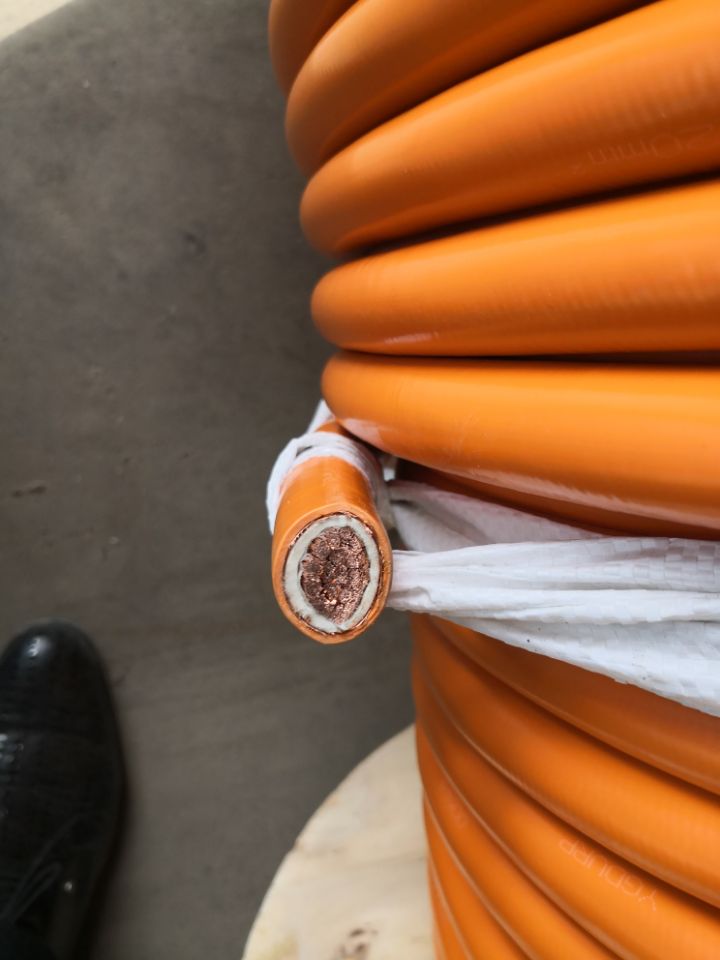

道路車輛用高壓電纜（屏蔽1000V） -40℃—125℃
High voltage cable for road vehicles (shielded 1000V)
產品特點：Product features:
耐溫、耐高壓、耐油 Resistance to temperature, high pressure and oil
屏蔽材料：Conductor:
鍍錫軟銅線編織 鋁塑復合帶 Tin-copper braid aluminum-plastic composite belt
護套材料：Sheath material:
交聯聚乙烯XLPE
執行標準：Executive standard:
QC/T 1037 C級 QC/T 1037 C
包裝方式：卷裝、盤裝Packing method:Roll or wooden plate
| 導體/ Conductor | 絕緣/Insulation | 較小編織密度 Minimum weaving density % | 電線/cable | ||||
|
標稱截面 Nominal cross section mm2 |
結構 structure mm |
較大電阻 The biggest resistanceΩ/km |
較小厚度 The minimum thickness mm |
絕緣外徑Insulation outside diameter mm |
標稱厚度Nominal thickness mm |
較大外徑 The largest diameter mm |
|
| 10 | 329/0.21 | 1.82 | 0.8 | 5.9-6.5 | 85 | 0.8 | 9.1-9.9 |
| 16 | 513/0.21 | 1.16 | 0.82 | 7.7-8.3 | 85 | 0.8 | 10.9-11.7 |
| 25 | 798/0.21 | 0.743 | 1.04 | 9.4-10.4 | 85 | 1.0 | 13.2-14.5 |
| 35 | 1121/0.21 | 0.527 | 1.04 | 9.6-11.6 | 85 | 1.0 | 13.4-15.7 |
| 50 | 1615/0.21 | 0.368 | 1.2 | 11.5-13.5 | 85 | 1.16 | 15.7-18.0 |
| 70 | 2242/0.21 | 0.259 | 1.2 | 13.5-15.5 | 85 | 1.16 | 17.7-20.0 |
| 95 | 3000/0.21 | 0.196 | 1.2 | 16.0-18.0 | 85 | 1.16 | 20.2-22.5 |
