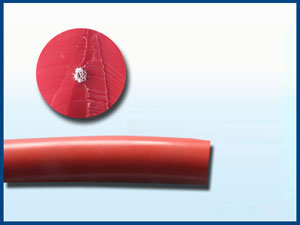

用途
本產品具有耐高低溫、耐潮濕、耐老化、耐腐蝕、抗輻射等特點,適用于絕緣電機、電器引接線等。
使用條件
(1) 長期允許工作溫度范圍：-60～+180℃
(2) 安裝最小彎曲半徑：不小于電纜外徑的10倍。
型號及名稱
|
型 號 |
名 稱 |
主要用途 |
|
JG、JHXG |
硅橡膠絕緣引接線 |
用于1140V及以下的F級，H級絕緣電機和電器引接線 |
|
JGG |
硅橡膠絕緣高壓引接線 |
用于6000V-10000V之間的絕緣電機、電器用引接線 |
技術參數
|
導體標稱截面mm2 |
絕緣標稱外徑mm |
成品重量kg/km |
20℃時導體電阻不大于Ω/km |
||||||
|
JG、JHXG |
JGG |
JG、JHXG |
JGG |
||||||
|
500V |
1000V |
6000V |
10000V |
500V |
1000V |
6000V |
10000V |
||
|
0.75 |
3.2 |
3.6 |
5.8 |
6.8 |
15.4 |
18.1 |
38.8 |
51.4 |
26.7 |
|
1 |
3.3 |
3.7 |
5.9 |
6.9 |
18.3 |
21.1 |
42.6 |
55.5 |
20.0 |
|
1.5 |
3.6 |
4.0 |
6.2 |
7.6 |
23.6 |
26.7 |
49.4 |
68.9 |
13.7 |
|
2 |
- |
- |
6.9 |
7.9 |
- |
- |
62.1 |
77.0 |
9.48 |
|
2.5 |
4.1 |
4.5 |
7.3 |
8.5 |
33.7 |
37.2 |
70.3 |
89.3 |
8.21 |
|
4 |
5.0 |
5.4 |
8.2 |
9.0 |
53.6 |
57.8 |
96.3 |
110.2 |
5.09 |
|
6 |
6.0 |
64 |
9.6 |
10.4 |
76.1 |
81.1 |
132.8 |
149.0 |
3.39 |
|
10 |
7.6 |
7.8 |
10.8 |
11.6 |
130.6 |
133.7 |
190.2 |
208.4 |
1.95 |
|
16 |
8.7 |
9.1 |
12.3 |
13.1 |
183.6 |
191.1 |
260.3 |
280.9 |
1.24 |
|
25 |
10.6 |
11.0 |
13.8 |
14.6 |
279.4 |
288.1 |
358.1 |
381.0 |
0.795 |
|
35 |
12.8 |
13.2 |
16.0 |
16.8 |
391.7 |
402.2 |
485.1 |
511.7 |
0.565 |
|
50 |
15.1 |
15.5 |
17.9 |
18.7 |
551.8 |
564.1 |
645.0 |
674.5 |
0.393 |
|
70 |
16.5 |
16.9 |
19.7 |
20.5 |
749.9 |
763.4 |
867.0 |
899.5 |
0.277 |
|
95 |
18.9 |
19.3 |
21.7 |
22.5 |
982.6 |
998.0 |
1097.5 |
1133.2 |
0.210 |
|
120 |
20.8 |
21.2 |
24.4 |
26.4 |
1232.5 |
1249.5 |
1396.9 |
1499.6 |
0.164 |
|
150 |
23.7 |
24.1 |
27.3 |
293 |
1532.8 |
1552.1 |
1718.0 |
1832.6 |
0.132 |
|
185 |
25.1 |
25.5 |
29.3 |
31.3 |
1842.1 |
1862.6 |
2073.0 |
2195.5 |
0.108 |
|
240 |
28.5 |
28.9 |
32.9 |
34.9 |
2435.2 |
2435.2 |
2685.1 |
2822.1 |
0.0871 |
| 導體截面積(mm2) | 導體結構根/(mm) | 標稱外徑 | 20℃導體電阻≤Ω/km | |||
| JG 1KVAC | JGG 3KVAC | JGG 6KVAC | JGG 10KVAC | |||
| 0.5 | 16/0.20 | 3.3 | 4.85 | 5.85 | 8.8 | 40.1 |
| 0.75 | 24/0.20 | 4 | 5.15 | 6.1 | 8.9 | 26.7 |
| 1 | 32/0.20 | 4.25 | 5.35 | 6.2 | 9 | 20 |
| 1.5 | 48/0.20 | 4.5 | 6 | 6.8 | 9.1 | 13.7 |
| 2 | 40/0.25 | 4.8 | 6.3 | 7.2 | 9.2 | 10 |
| 2.5 | 49/0.25 | 5.2 | 6.8 | 7.8 | 9.3 | 8.21 |
| 4 | 56/0.30 | 6 | 7.6 | 8.5 | 10 | 5.09 |
| 6 | 84/0.30 | 7 | 8.7 | 9.8 | 11.5 | 3.39 |
| 10 | 84/0.40 | 8.2 | 9.8 | 10.9 | 12 | 1.95 |
| 16 | 126/0.40 | 9.6 | 11.4 | 12.8 | 13.6 | 1.24 |
| 25 | 196/0.40 | 11.5 | 13.1 | 14.5 | 15 | 0.8 |
| 35 | 276/0.40 | 13.2 | 14.4 | 16 | 16.8 | 0.57 |
| 50 | 396/0.40 | 15.8 | 16.9 | 18.1 | 18.8 | 0.4 |
| 70 | 360/0.50 | 17.2 | 18.8 | 20.5 | 21 | 0.28 |
| JGG 35KVAC | JGG 50KVAC | JGG 80KVAC | JGG 100KVAC | |||
| 4 | 56/0.30 | 18 | 21.5 | 24.5 | 27 | 5.09 |
| 6 | 84/0.30 | 18.5 | 22.20 | 25.00 | 27.5 | 3.39 |
| 10 | 84/0.40 | 19.8 | 23.80 | 25.80 | 28 | 1.95 |
| 16 | 126/0.40 | 20.5 | 24.50 | 26.80 | 29 | 1.24 |
